As more people turn to sustainable energy solutions, solar power has become a popular and reliable choice. If you’re considering solar energy, you might be wondering, “What Size Solar Panel to Charge 100Ah Battery?” This guide will provide clear and comprehensive information to help you understand the factors involved and make an informed decision.
Understanding a 100Ah Battery
Battery Basics
What is a 100Ah Battery?
A 100Ah (Ampere-hour) battery can supply 100 amperes of current for one hour or 10 amperes for 10 hours, and so on. This rating indicates the total charge capacity of the battery.
Lead-Acid vs. Lithium Batteries
Characteristics and Suitability of Lead-Acid Batteries
Lead-acid batteries are commonly used due to their lower cost. However, they have a lower Depth of Discharge (DoD) and are typically safe to discharge up to 50%. This means a 100Ah lead-acid battery effectively provides 50Ah of usable capacity.
Characteristics and Suitability of Lithium Batteries

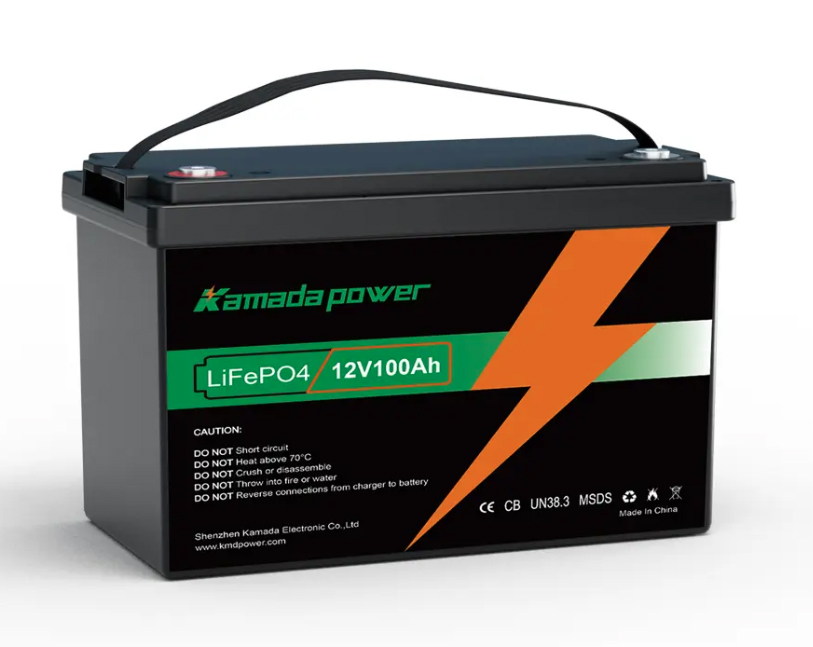

12V 100Ah Lithium battery, though more expensive, offer higher efficiency and longer lifespan. They can typically be discharged up to 80-90%, making a 100Ah lithium battery provide up to 80-90Ah of usable capacity. For longevity, a safe assumption is an 80% DoD.
Depth of Discharge (DoD)
DoD indicates how much of a battery’s capacity has been used. For example, a 50% DoD means half of the battery’s capacity has been used. The higher the DoD, the shorter the lifespan of the battery, particularly in lead-acid batteries.
Calculating the Charging Requirements of a 100Ah Battery
Energy Requirements
To calculate the energy needed to charge a 100Ah battery, you need to consider the battery type and its DoD.
Lead-Acid Battery Energy Requirements
For a lead-acid battery with a 50% DoD:
100Ah \times 12V \times 0.5 = 600Wh
Lithium Battery Energy Requirements
For a lithium battery with an 80% DoD:
100Ah \times 12V \times 0.8 = 960Wh
Impact of Peak Sun Hours
The amount of sunlight available in your location is critical. On average, most locations receive about 5 peak sun hours per day. This number can vary depending on geographical location and weather conditions.
Choosing the Right Solar Panel Size
Parameters:
- Battery Type and Capacity: 12V 100Ah, 12V 200Ah
- Depth of Discharge (DoD): For lead-acid batteries 50%, for lithium batteries 80%
- Energy Requirements (Wh): Based on battery capacity and DoD
- Peak Sun Hours: Assumed to be 5 hours per day
- Solar Panel Efficiency: Assumed to be 85%
Calculation:
- Step 1: Calculate the energy required (Wh)
Energy Required (Wh) = Battery Capacity (Ah) x Voltage (V) x DoD - Step 2: Calculate the required solar panel output (W)
Required Solar Output (W) = Energy Required (Wh) / Peak Sun Hours (hours) - Step 3: Account for efficiency losses
Adjusted Solar Output (W) = Required Solar Output (W) / Efficiency
Reference Solar Panel Size Calculation Table
| Battery Type | Capacity (Ah) | Voltage (V) | DoD (%) | Energy Required (Wh) | Peak Sun Hours (hours) | Required Solar Output (W) | Adjusted Solar Output (W) |
|---|---|---|---|---|---|---|---|
| Lead-Acid | 100 | 12 | 50% | 600 | 5 | 120 | 141 |
| Lead-Acid | 200 | 12 | 50% | 1200 | 5 | 240 | 282 |
| Lithium | 100 | 12 | 80% | 960 | 5 | 192 | 226 |
| Lithium | 200 | 12 | 80% | 1920 | 5 | 384 | 452 |
Example:
- 12V 100Ah Lead-Acid Battery:
- Energy Required (Wh): 100 x 12 x 0.5 = 600
- Required Solar Output (W): 600 / 5 = 120
- Adjusted Solar Output (W): 120 / 0.85 ≈ 141
- 12V 200Ah Lead-Acid Battery:
- Energy Required (Wh): 200 x 12 x 0.5 = 1200
- Required Solar Output (W): 1200 / 5 = 240
- Adjusted Solar Output (W): 240 / 0.85 ≈ 282
- 12V 100Ah Lithium Battery:
- Energy Required (Wh): 100 x 12 x 0.8 = 960
- Required Solar Output (W): 960 / 5 = 192
- Adjusted Solar Output (W): 192 / 0.85 ≈ 226
- 12V 200Ah Lithium Battery:
- Energy Required (Wh): 200 x 12 x 0.8 = 1920
- Required Solar Output (W): 1920 / 5 = 384
- Adjusted Solar Output (W): 384 / 0.85 ≈ 452
Practical Recommendations
- For a 12V 100Ah Lead-Acid Battery: Use at least a 150-160W solar panel.
- For a 12V 200Ah Lead-Acid Battery: Use at least a 300W solar panel.
- For a 12V 100Ah Lithium Battery: Use at least a 250W solar panel.
- For a 12V 200Ah Lithium Battery: Use at least a 450W solar panel.
This table provides a quick and efficient way to determine the necessary solar panel size based on different battery types and capacities. It ensures that you can optimize your solar power system for efficient charging under typical conditions.
Selecting the Right Charge Controller
PWM vs. MPPT
PWM (Pulse Width Modulation) Controllers
PWM controllers are more straightforward and less expensive, making them suitable for smaller systems. However, they are less efficient compared to MPPT controllers.
MPPT (Maximum Power Point Tracking) Controllers
MPPT controllers are more efficient as they adjust to extract the maximum power from the solar panels, making them ideal for larger systems despite their higher cost.
Matching the Controller with Your System
When selecting a charge controller, ensure it matches the voltage and current requirements of your solar panel and battery system. For optimal performance, the controller should be capable of handling the maximum current produced by the solar panels.
Practical Considerations for Solar Panel Installation
Weather and Shading Factors
Addressing Weather Variability
Weather conditions can significantly affect solar panel output. On cloudy or rainy days, solar panels produce less power. To mitigate this, slightly oversize your solar panel array to ensure consistent performance.
Dealing with Partial Shading
Partial shading can drastically reduce the efficiency of solar panels. Installing the panels in a location that receives unobstructed sunlight for most of the day is crucial. Using bypass diodes or microinverters can also help mitigate the effects of shading.
Installation and Maintenance Tips
Optimal Placement of Solar Panels
Install solar panels on a south-facing roof (in the Northern Hemisphere) at an angle that matches your latitude to maximize sun exposure.
Regular Maintenance
Keep the panels clean and free from debris to maintain optimal performance. Regularly check the wiring and connections to ensure everything is working correctly.
Conclusion
Choosing the right size solar panel and charge controller is crucial for efficiently charging a 100Ah battery. By considering the type of battery, depth of discharge, average peak sun hours, and other factors, you can ensure your solar power system meets your energy needs effectively.
FAQs
How Long Does It Take to Charge a 100Ah Battery with a 100W Solar Panel?
Charging a 100Ah battery with a 100W solar panel can take several days, depending on the battery type and weather conditions. A higher wattage panel is recommended for faster charging.
Can I Use a 200W Solar Panel to Charge a 100Ah Battery?
Yes, a 200W solar panel can charge a 100Ah battery more efficiently and faster than a 100W panel, especially under optimal sun conditions.
What Type of Charge Controller Should I Use?
For smaller systems, a PWM controller might suffice, but for larger systems or for maximizing efficiency, an MPPT controller is recommended.
By following the guidelines provided in this article, you can make an informed decision and ensure your solar power system is both efficient and reliable.
